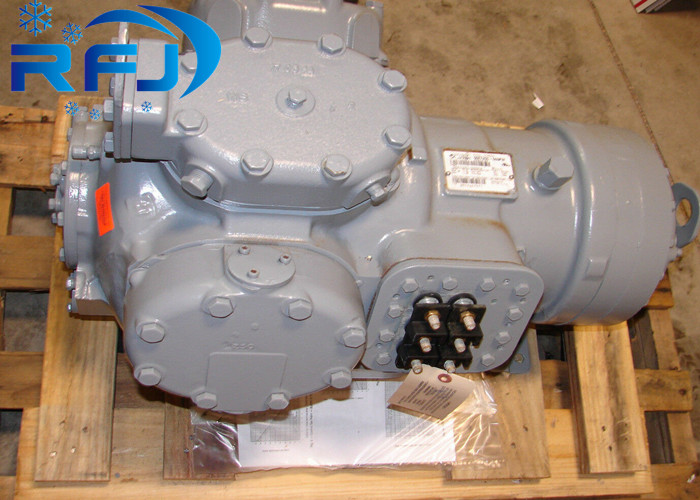

Semi-Hermetic Carlyle Carrier 06D Compressor 06dr013 with R134a
1, Product Description:
Model: 06dr013
Power:7.5Hp
Voltage::380V/3pH/50Hz
Oil Charge:2.13
Gallons Needed:1
Refrigerant: R134A
HS Code:8414301300
Color:Black
2, product feature and application:
Low Temperature Reciprocating Semi-Hermetic Compressor 06DR013 is application in refrigeration ,There is a specific contour on the piston surface, which makes the suction valve plate fit with the groove of the piston, so as to reduce the clearance, improve the capacity and efficiency,The connecting rod has a through hole, which can provide good bearing lubrication and extend the service life. Stable performance, can be widely used in various fields Compressors are available for operation in low temperature R-502, medium temperature R-12, and air conditioning R-22 applications.
Design modifications allow the use of HFC refrigerants R-134a, R-404A, R-407C, and R-507. This guide provides information and recommen dations for the successful application of compressors in A/C and refrigeration systems.
Maximum operating conditions of the compressor models are generally defined in the performance curves and will differ with each model. Operating conditions should be controlled so that the discharge gas does not exceed 275°F (135°C) at the discharge service valve and that oil temperature does not exceed 160°F (71°C). For HFC/POE applications the maximum recommended discharge temperature is 250°F (121°C).
3,Product details
| Totaline parts no. | HP | Low Temperature (R-404a) |
| Discharge gas (m3/min) | Cooling capacity(50Hz) (Kw) | Cooling capacity(60Hz) (Kw) |
| 06DR109 | 2 | 0.21 | 2.2 | 2.64 |
| 06DR013 | 3 | 0.31 | 2.6 | 3.12 |
| 06DR316 | 5 | 0.38 | 3.81 | 4.57 |
| 06DR718 | 5 | 0.43 | 4.96 | 5.95 |
| 06DR820 | 6.5 | 0.47 | 5.44 | 6.53 |
| 06DR724 | 6.5 | 0.56 | 5.72 | 6.86 |
| 06DR228 | 7.5 | 0.66 | 7.56 | 9.07 |
| 06DR337 | 10 | 0.88 | 10.28 | 12.34 |
| 06ER150 | 15 | 1.19 | 12.13 | 14.55 |
| 06ER165 | 20 | 1.53 | 15.71 | 18.55 |
| 06ER175 | 25 | 1.78 | 17.93 | 21.51 |
| 06ER099 | 30 | 2.34 | 24.99 | 29.99 |
4, Our main compressor lines are :
· compressors,
· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES
· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES
· Secop compressor, Carrier(Carlyle) compressor
· Hitachi compressor,Daikin compressor, Sanyo compressor
·Tecumseh compressor, LG compressor, Mitsubishi compressor,
·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
5,Deliever ,shipping and serving
